目的

先前用 Powershell 遠端建置測試機的 DockerDesktop,開發人員一多後,發現太麻煩了,最後還是弄了Jenkins,並整合 Github 憑證及遠端佈署 DockerDesktop

開發環境說明

預期開發者 Push Commit 後,Jenkins 自動將 Github Repo 拉下來,並自動建置,最後佈署到最終的 Windows Docker Desktop 主機。

首先,建立 Jenkins 環境

開啟 Powershell ,建立資料夾作為 Jenkins 的工作目錄

$workspacePath = "C:\jenkins_workspace"
New-Item -ItemType Directory -Path $workspacePath -Force | Out-Null

執行以下指令,Docker 運行 Jenkins 容器,並將 workspace 掛載到本地磁碟

docker run -d -p 8080:8080  -p 50000:50000 -v ${hostWorkspacePath}:/var/jenkins_home/workspace  -v /var/run/docker.sock:/var/run/docker.sock --name jenkins --restart=always jenkins/jenkins:lts

P.S. hostWorkspacePath 為宿主主機的資料夾路徑

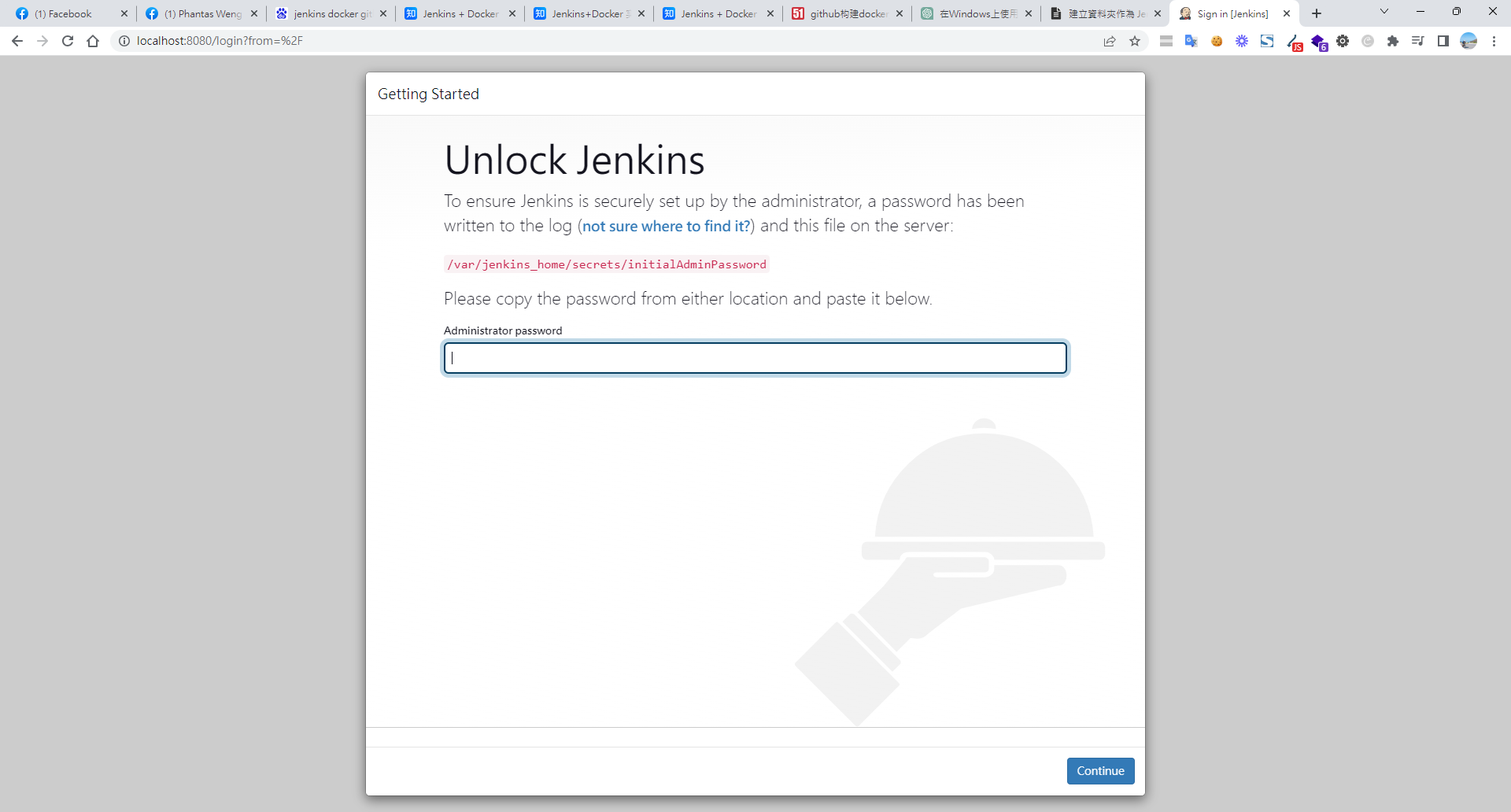

看到這畫面,要進去容器拿這密碼

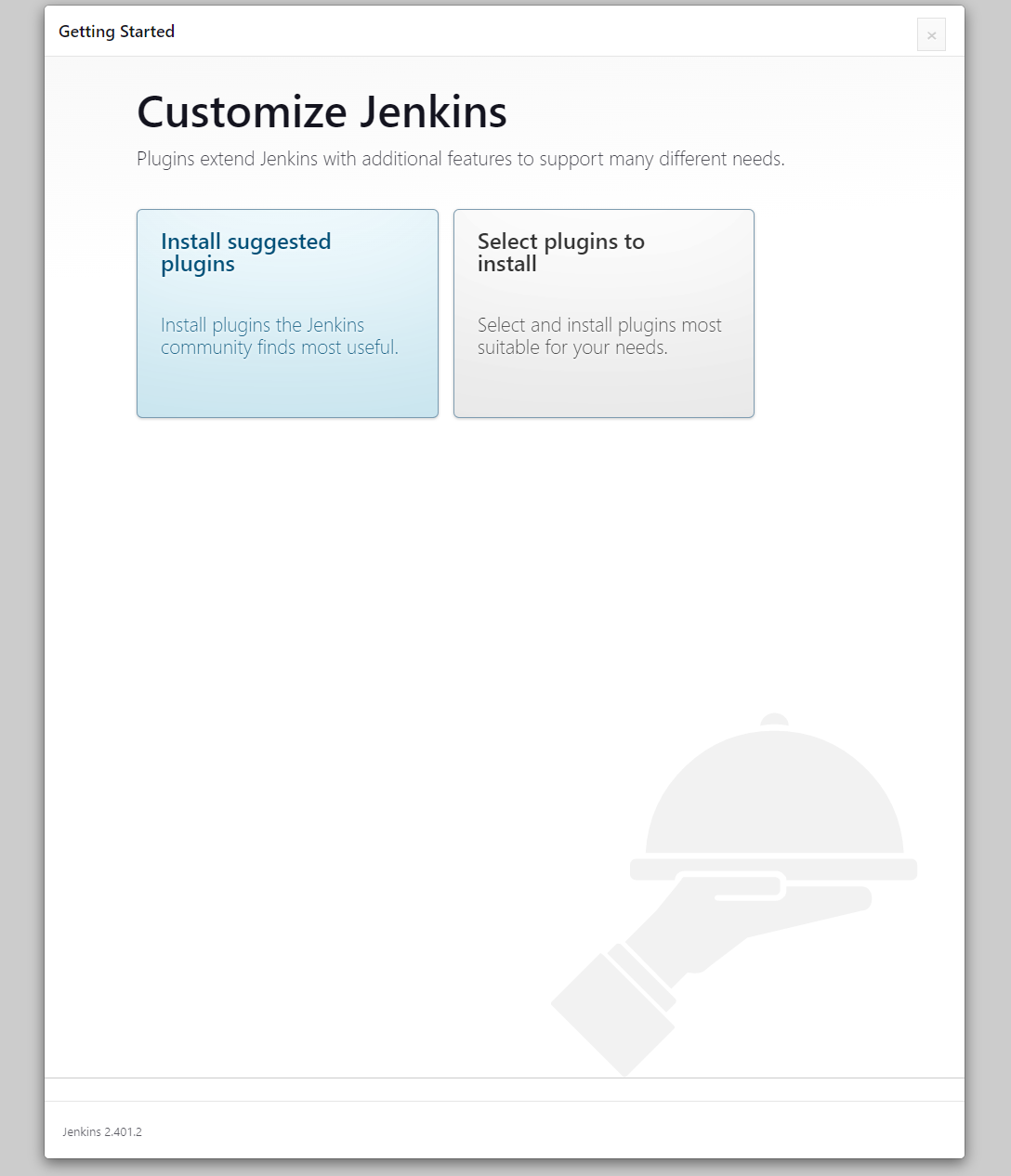

接著,安裝建議的插件

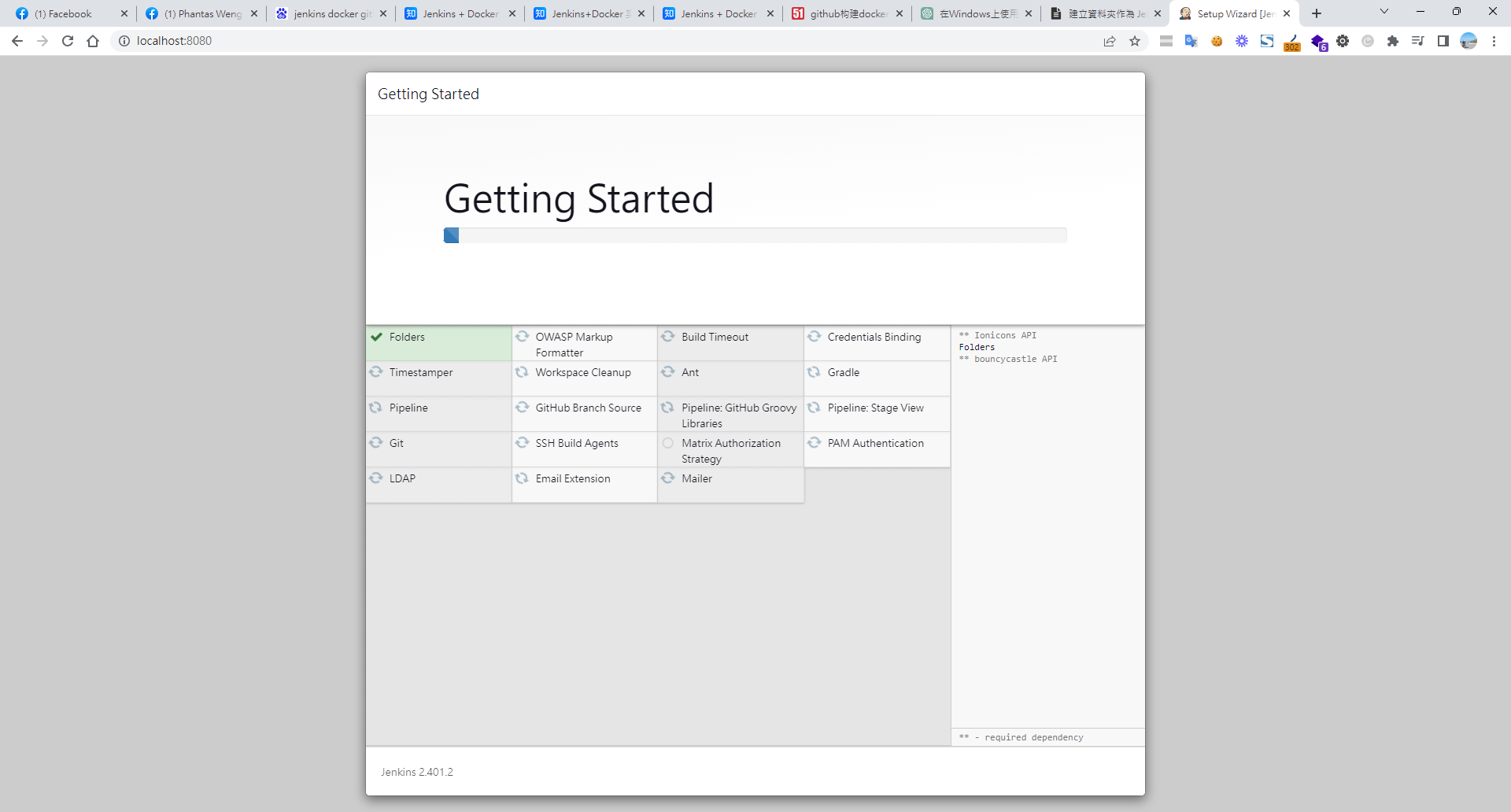

等待安裝完成,就能使用 localhost:8080 進入 Jenkins 網頁

Manage Jenkins > Plugins >Available plugins,安裝常用套件

  • SSH
  • Publish Over SSH
  • Msbuild
  • .NET SDK Support
  • Office 365 Connector Version
  • PowerShell
  • Docker
  • Docker Pipeline
  • HTTP Request
  • Stage View
  • Pipeline Utility Steps
  • Pipeline: Input Step

因為我比較熟 docker 指令,用以下指令在 Jenkins 容器中安裝 Docker

chown -R jenkins:jenkins ${hostWorkspacePath}
docker logs -f jenkins // 獲得 init password
docker exec -it -uroot jenkins bash
apt-get update && apt-get -y install apt-transport-https ca-certificates curl gnupg2 software-properties-common && curl -fsSL https://download.docker.com/linux/$(. /etc/os-release; echo "$ID")/gpg > /tmp/dkey; apt-key add /tmp/dkey && add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/$(. /etc/os-release; echo "$ID") $(lsb_release -cs) stable" && apt-get update && apt-get -y install docker-ce

// jenkins 權限不足
usermod -aG docker jenkins
usermod -aG root jenkins
chmod 777 /var/run/docker.sock

Jenkins Github 全域憑證設定

首先,透過 docker 指令連入 Jenkins 容器

docker exec -it -uroot jenkins bash

安裝 docker

apt-get update
apt-get install -y apt-transport-https ca-certificates curl gnupg2 software-properties-common
curl -fsSL https://download.docker.com/linux/debian/gpg | apt-key add -
echo "deb [arch=amd64] https://download.docker.com/linux/debian $(lsb_release -cs) stable" | tee /etc/apt/sources.list.d/docker.list
apt-get update
apt-get install -y docker-ce-cli

接著,產生ssh key,一直按 Enter 就好

ssh-keygen -t rsa -C "root"

讀取產生的公鑰,複製到github SSH and GPG keys 設定

cat /root/.ssh/id_rsa.pub

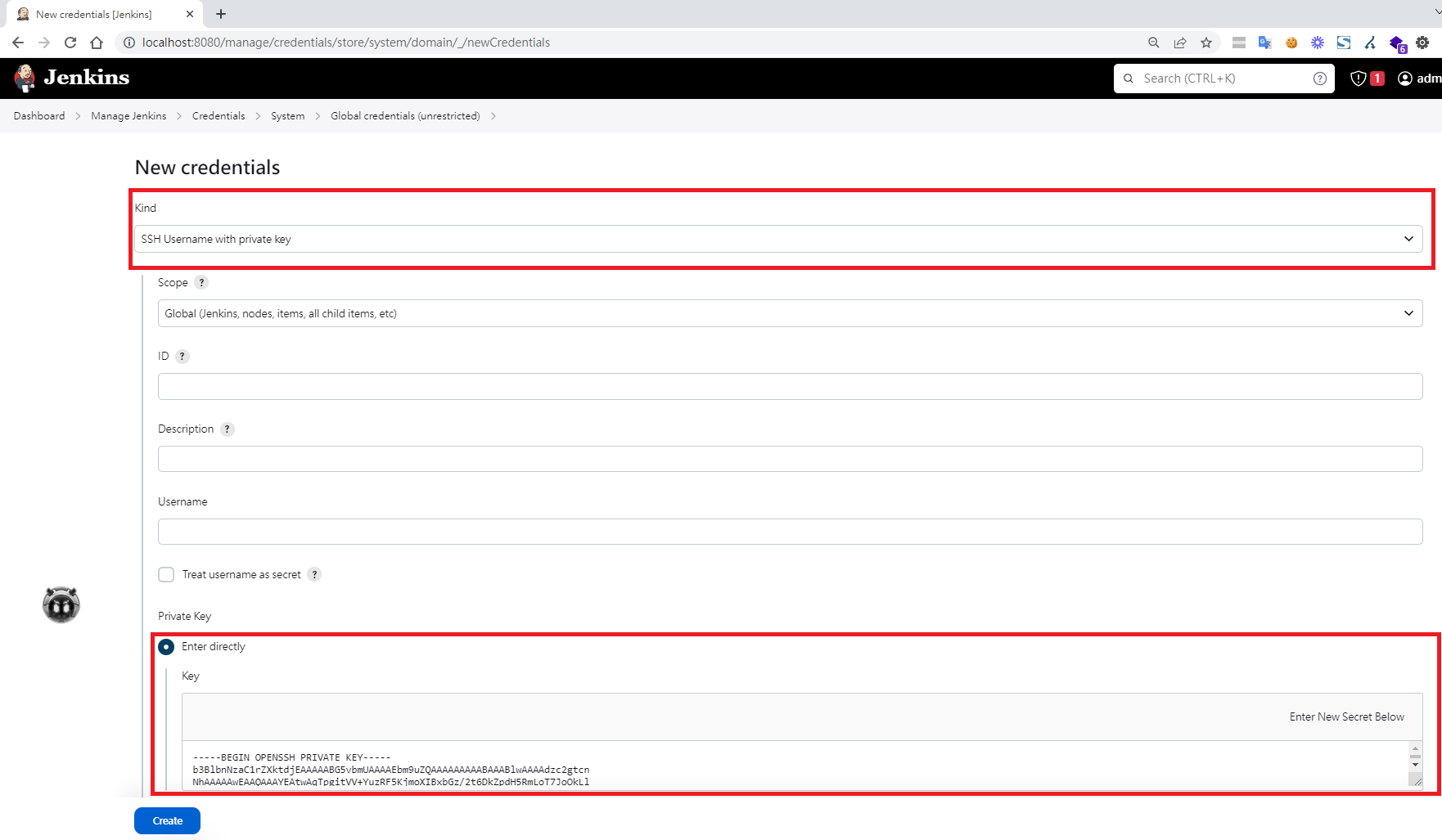

讀取產生的私鑰,複製到 Jenkins 全域設定,Manage Jenkins > Credentials > System > Global credentials (unrestricted) > Add credentials ( -----BEGIN OPENSSH PRIVATE KEY-----也要一起複製) > Create

cat /root/.ssh/id_rsa

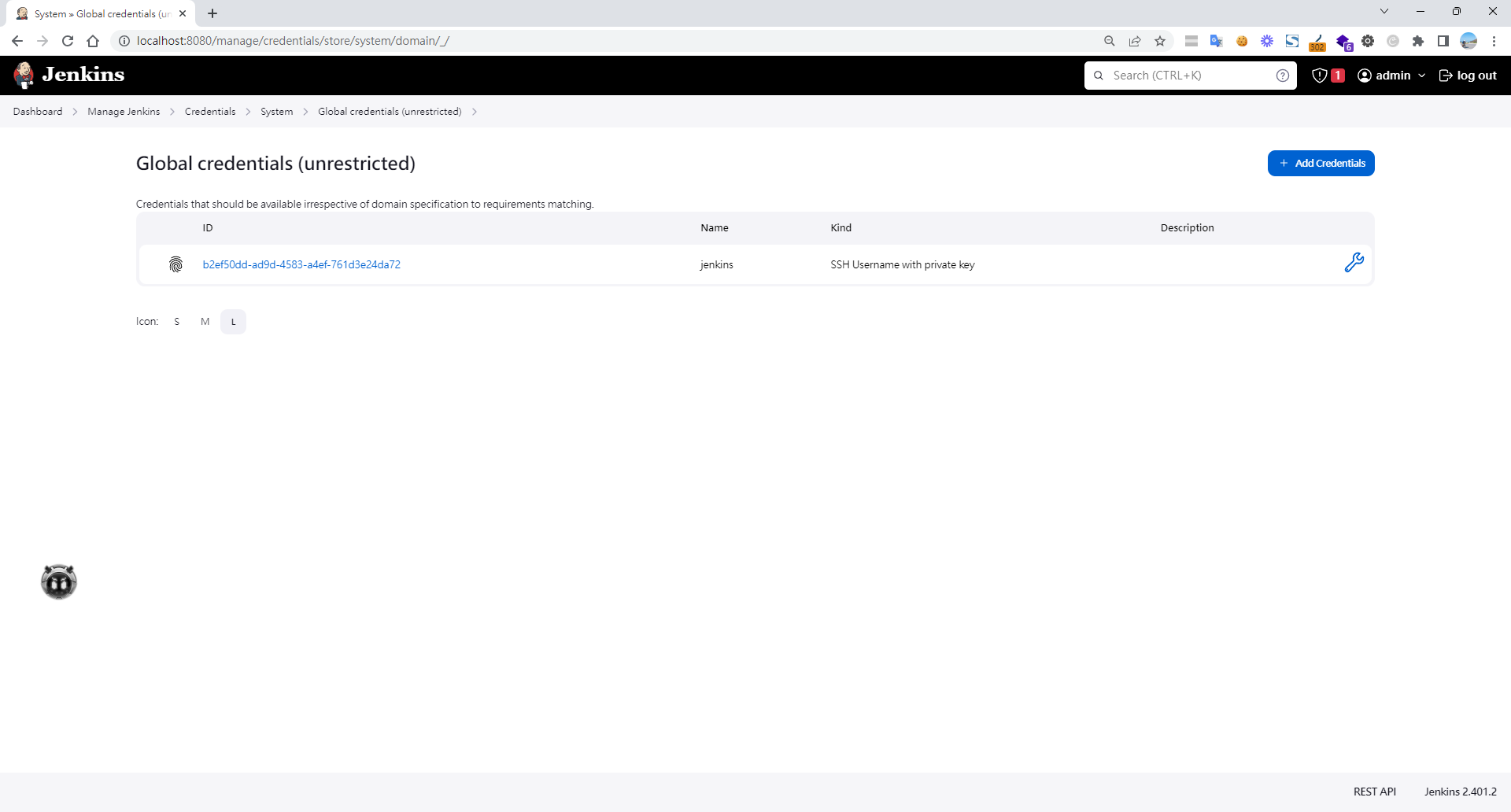

Create 後會取得一個 ID 之後會將複製到 pipeline 中

Manage Jenkins > Security > Git Host Key Verification Configuration > No verification

建立新的建置工作

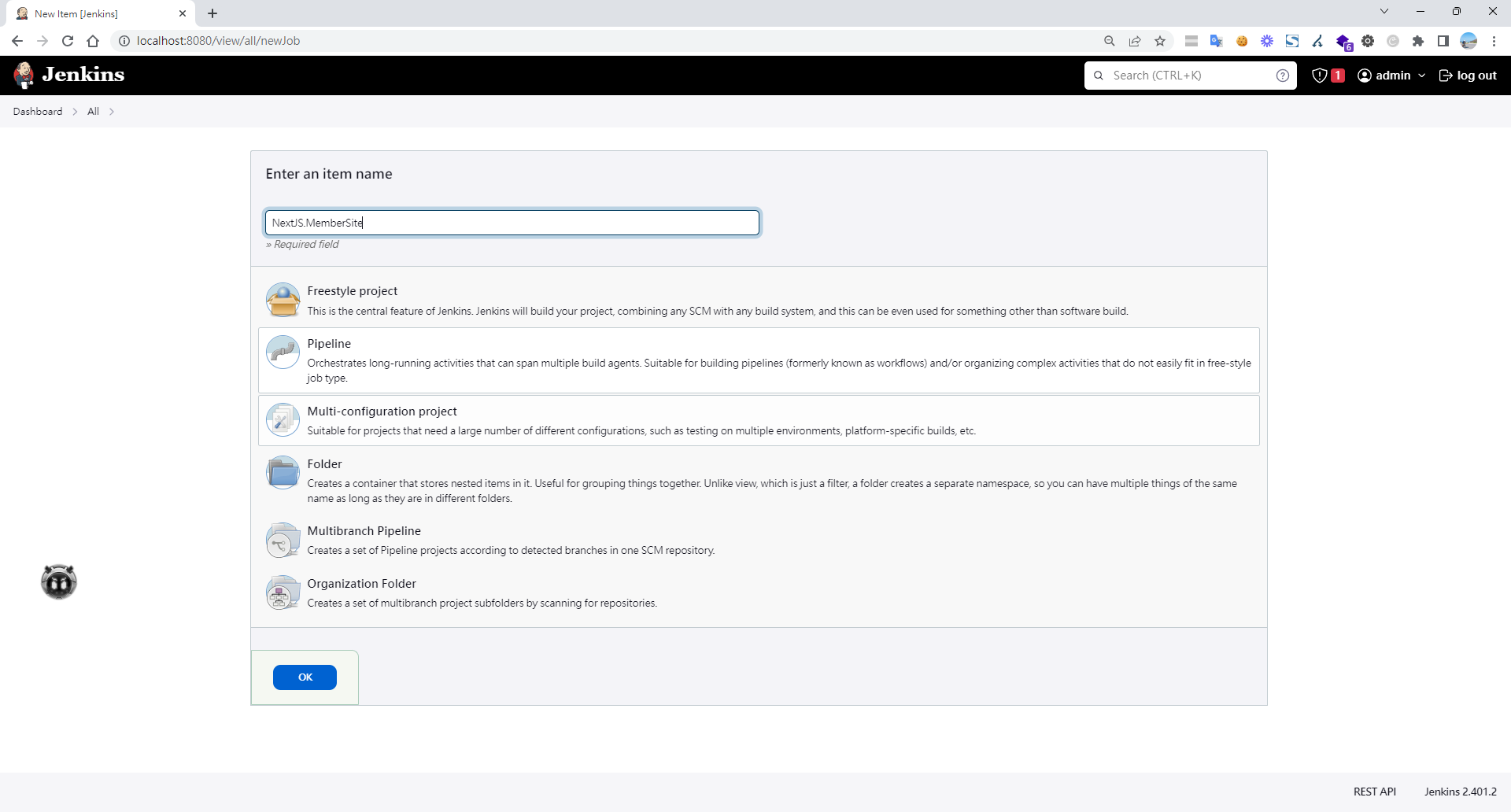

回到 Dashboard > New Item > Pipeline

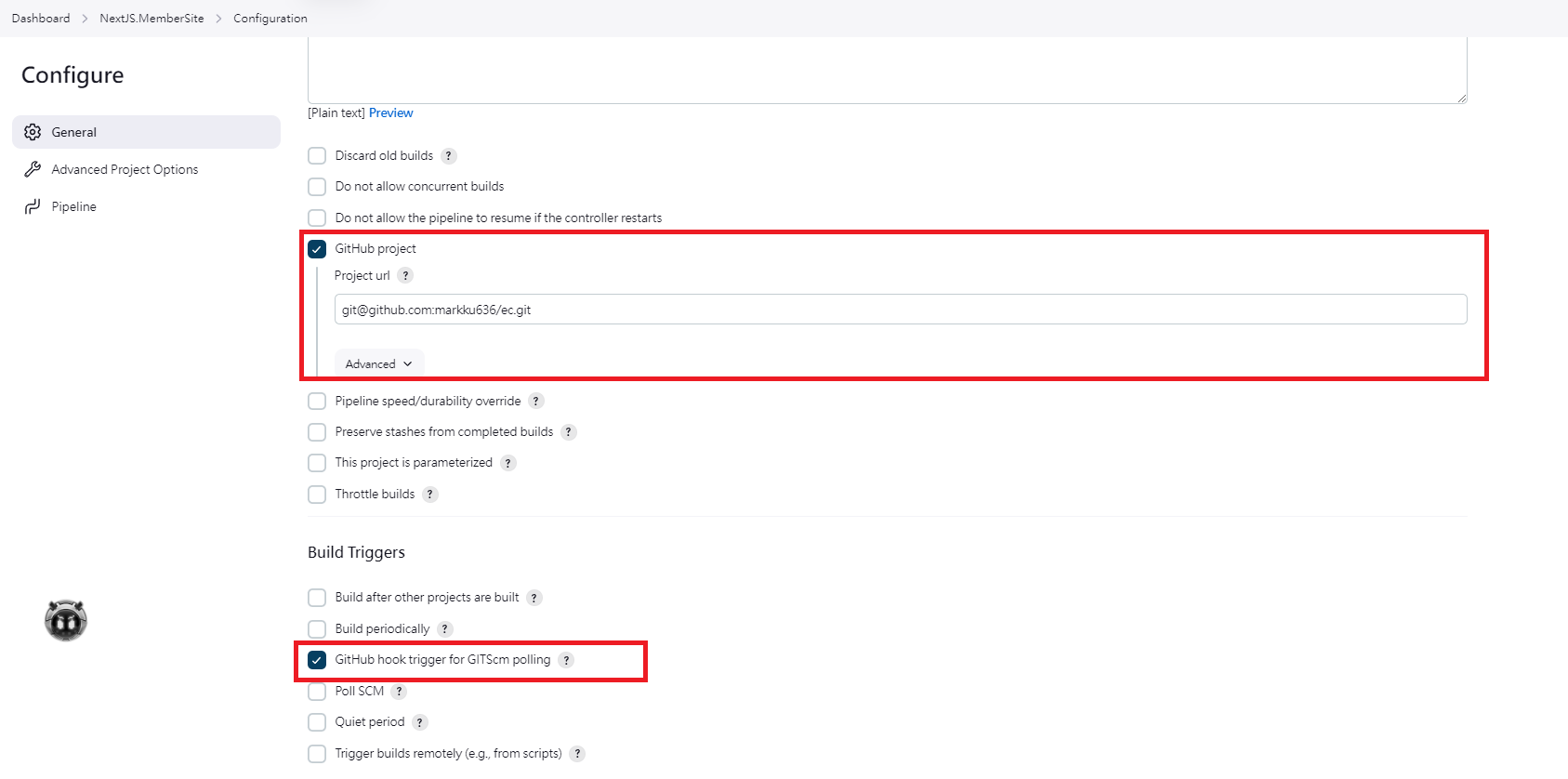

設定 Github hook trigger

撰寫

properties([pipelineTriggers([githubPush()])])
pipeline {
    agent any

    environment {
        tag = ':latest'
        imageShortName = 'de-next-ap'
        imageName = "${imageShortName}${tag}"
        containerName = "${imageShortName}-1"
        containerUrl = "192.168.50.49:2375"
        dockerfile = "./Dockerfile"
        port = "30000:80"
    }

    stages {
        stage("GitHub Pull") {
             steps {
                git branch: 'main',
                credentialsId: 'b2ef50dd-ad9d-4583-a4ef-761d3e24da72',
                url:  '[email protected]:markku636/ec.git/'
            }

        }


        stage('Stop containers') {
            steps {
                script {
                    containerStatus = sh(script: "docker -H=\"${containerUrl}\" ps -a --filter=name=${containerName} -q", returnStdout: true).trim()
                    if (containerStatus != '') {
                        echo "Stopping container ${containerName}"
                        sh "docker -H=\"${containerUrl}\" stop ${containerName}"
                    } else {
                        echo "Container ${containerName} does not exist"
                    }
                }
            }
        }

        stage('Remove containers') {
            steps {
                script {
                    containerStatus = sh(script: "docker -H=\"${containerUrl}\" ps -a --filter=name=${containerName} -q", returnStdout: true).trim()
                    if (containerStatus != '') {
                        echo "Removing container ${containerName}"
                        sh "docker -H=\"${containerUrl}\" rm -f ${containerName}"
                    } else {
                        echo "Container ${containerName} does not exist"
                    }
                }
            }
        }

        stage('Remove image') {
            steps {
                script {
                    existingImages = sh(script: "docker -H=\"${containerUrl}\" images --filter=reference='${imageName}' -q", returnStdout: true).trim()
                    if (existingImages != '') {
                        echo "[Removing image] Removing the existing image.."
                        sh "docker -H=\"${containerUrl}\" rmi -f '${imageName}'"
                    } else {
                        echo "[Removing image] The image does not exist"
                    }
                }
            }
        }

        stage('Build image remotely') {
            steps {
                sh 'docker -H="${containerUrl}" build -t "${imageName}" . -f "${dockerfile}"'
            }
        }

        stage('Create and start container application') {
            steps {
                sh 'docker -H="${containerUrl}" run -d --name "${containerName}" --restart=always -p "${port}" "${imageShortName}"'
            }
        }

    }
}

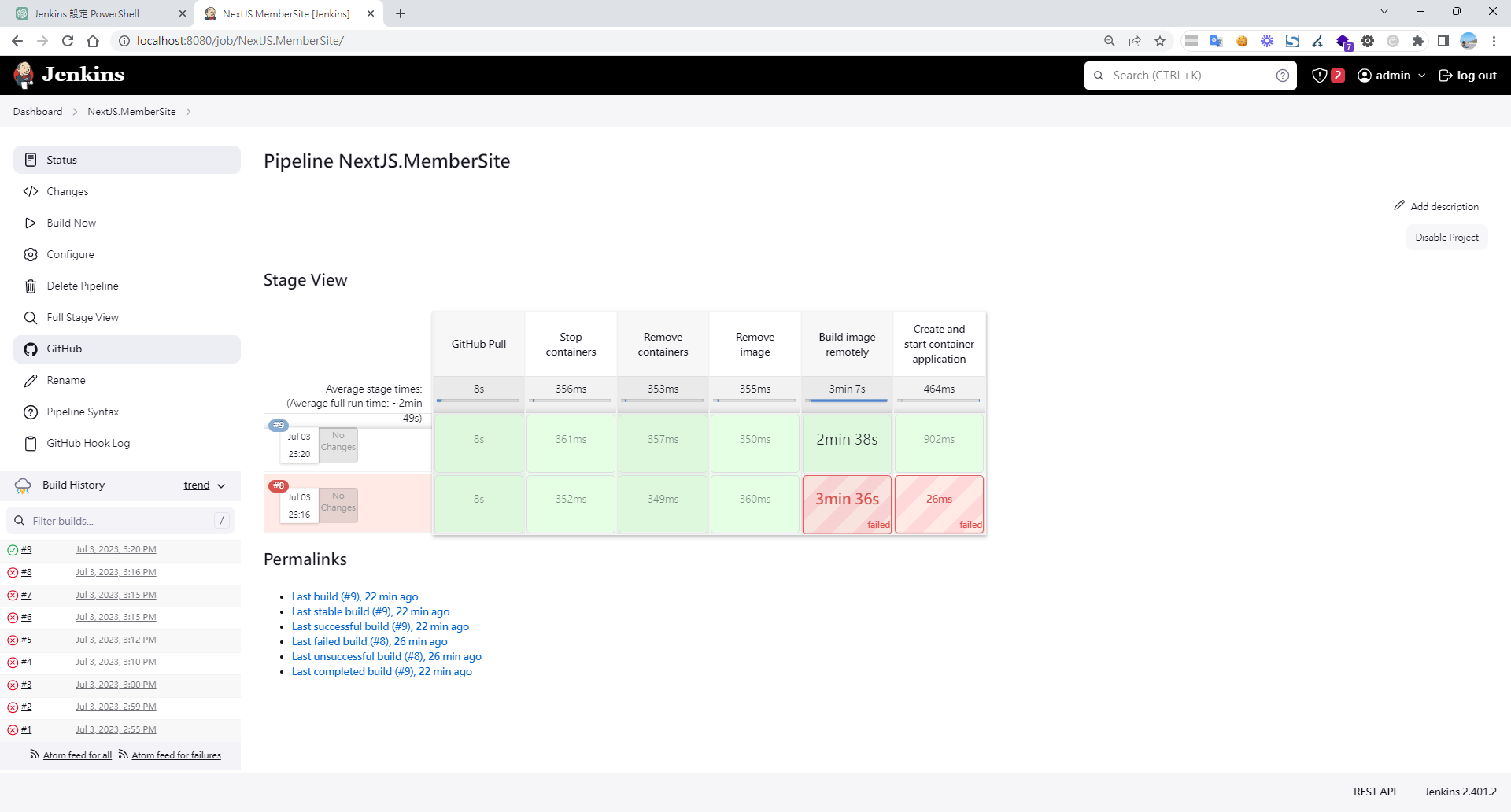

設定這麼久,終於大功告成,自從有了容器化,建置開發環境,越來越簡單及方便遷移。

參考資料

參考資料1
參考資料2

備忘錄 - 找回 admin 初始密碼

cat /var/jenkins_home/secrets/initialAdminPassword

常用套件

  • docker
  • Build User Vars
  • Build Monitor View
  • Build Environment Plugin
  • ThinBackup
  • build-failure-analyzer
  • log-parser-plugin
  • SSH
  • Publish Over SSH
  • Msbuild
  • .NET SDK Support
  • DOCKER
  • Office 365 ConnectorVersion
  • PowerShell
  • jenkins container 安裝 docker d
